The scheme solution of air conditioning

Description Topology Product

Silan provides a complete set of solutions on the electronic control scheme of inverter air conditioning, including MCU master control scheme, IPM for compressor, IPM for fan, ACDC chip, PFC related (PFC driver chip, IGBT, FRD) circuits.

Permanent magnet synchronous motor (PMSM) is widely used due to its advantages such as high efficiency, small size, simple structure and fast dynamic response.For air conditioning applications, the overall solution provided by Silan adopts "MCU(SC32F58128)+ dual IPM+ACDC+PFC", which can simultaneously control air conditioning compressor, DC fan and PFC.The motor control adopts the method of single resistance sampling, and at the same time through the sensorless algorithm to effectively reduce the cost of the electronic control scheme, and has the advantages of fast start-up speed, strong load capacity, etc., this control method combined with the whole set of scheme of Silan can make the customer's electronic control BOM cost reach the lowest level in the industry.

Classification of topologies of overall schemes:


Topology

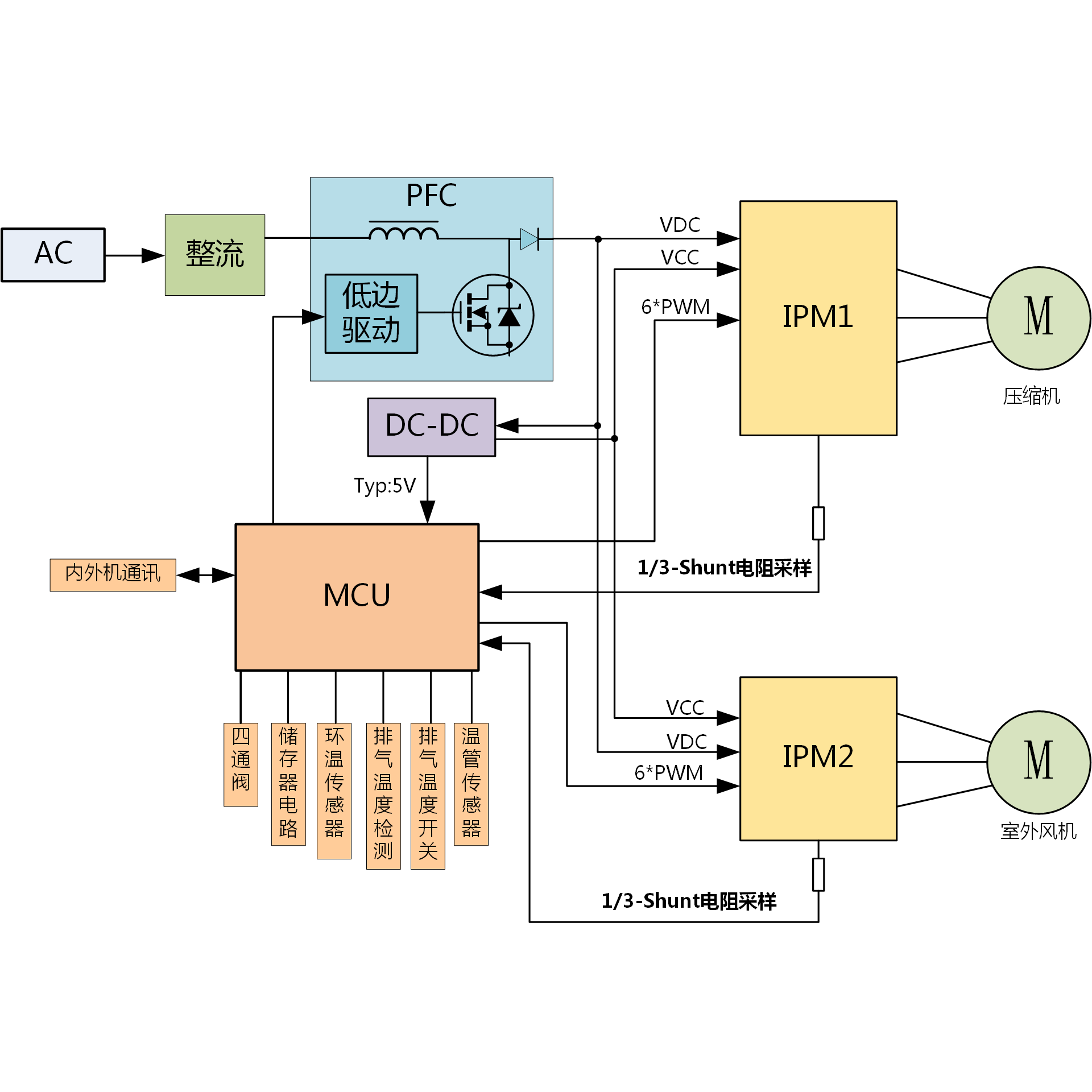

Silan provides a complete set of hardware solutions for air conditioning external panel, including: MCU,IPM,PFC(drive IC,IGBT,FRD),ACDC.The typical topology of home air conditioners is as follows.

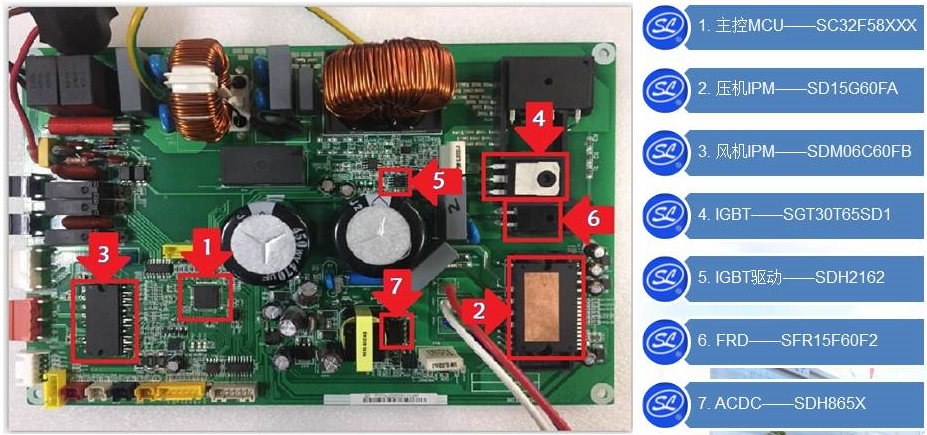

The case for the whole scheme:

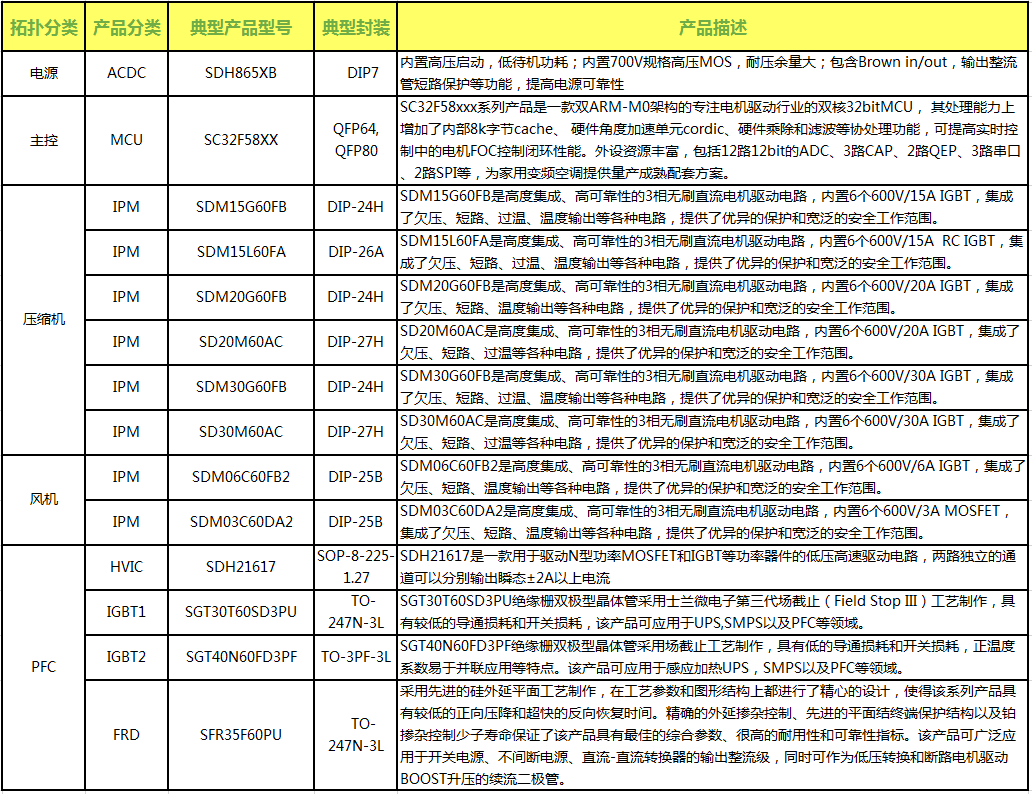

Product

Topological classification	product category	Typical product model	Typical package	product description
IPM	IPM	SD15M60AC	DIP-27H	600V/15A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
IPM	IPM	SD20A60FA	DIP-27H	600V/20A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
IPM	IPM	SD20M60AC	DIP-27H	600V/20A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
IPM	IPM	SDM10G60FB	DIP-24HL	600V/10A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
IPM	IPM	SD15G60FA	DIP-24HL	600V/15A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
IPM	IPM	SDM15G60FB	DIP-24HL	600V/15A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
IPM	IPM	SDM20G60FB	DIP-24HL	600V/20A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
IPM	IPM	SD30M60AC	DIP-27H	600V/30A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
IPM	IPM	SDM30G60FB	DIP-24HL	600V/30A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
