SLP74AHCT86

QUADRUPLE 2-INPUT EXCLUSIVE-OR GATE

Description Main feature Product specification classification Internal block diagram Relevant package outline drawing

The SLP74AHCT86 is high-speed CMOS devices.

This device is quadruple 2-input-exclusive-OR gates and performs the Boolean function Y = AB(_) + A(_)B.

Main feature

Balanced propagation delays
All inputs have a Schmitt-trigger action
Compatible with TTL input levels
ESD protection:

HBM exceeds 2000V
CDM exceeds 1000V

Latch-up performance exceeds 100mA
Specified from -40°C to +85°C and from -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SLP74AHCT86EB	SOP-14-225-1.27	AHCT86	Halogen free	Tube
SLP74AHCT86EBTR	SOP-14-225-1.27	AHCT86	Halogen free	Tape & Reel

Block Diagram

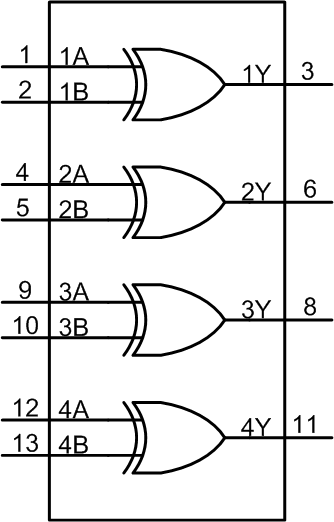

Fig.1 Function diagram

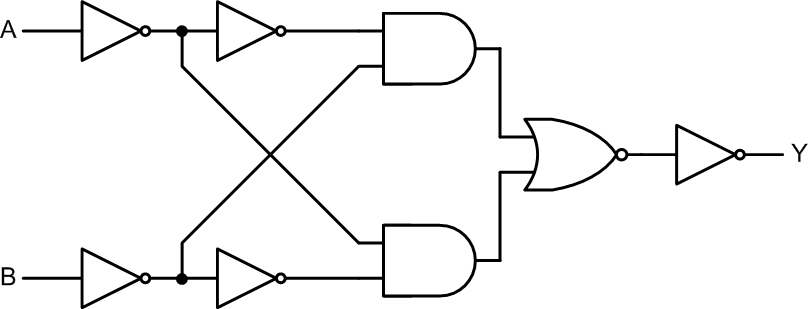

Fig.2 Logic diagram(one gate)

Packages

SOP-14-225-1.27
