The SLP74AVC16T245 is an 16-bit, dual supply transceiver that enables bidirectional level translation. It has dual supplies (V_CC(A) and V_CC(B) ) for voltage translation and four 8-bit input-output ports (nAn and nBn) each with its own output enable (nOE(———) and send/receive (nDIR) input for direction control. V_CC(A)and V_CC(B)can be independently supplied at any voltage between 0.8V and 3.6V making the device suitable for low voltage translation between any of the following voltages: 0.8V, 1.2V, 1.5V, 1.8V, 2.5V and 3.3V. A HIGH on nDIR selects transmission from nAn to nBn while a LOW on nDIR selects transmission from nBn to nAn. A HIGH on nOE(——— causes the outputs to assume a high-impedance OFF-state. The device control pins (1DIR, 2DIR, /1OE(———, and /2OE(———) are supplied by V_CCA.

The device is fully specified for partial power-down applications using I_OFF. The I_OFF circuitry disables the output, preventing any damaging backflow current through the device when it is powered down. In suspend mode when either V_CC(A) or V_CC(B) are at GND level, both An and Bn are in the high-impedance OFF-state.

Main feature

Wide supply voltage range

V_CC(A): 0.8V to 3.6V
V_CC(B): 0.8V to 3.6V

Inputs accept voltages up to 3.6V
Control inputs V_IH/V_IL levels are referenced to V_CCA voltage
Ioff supports Partial-Power-Down Mode operation
Maximum data rates:

220Mbit/s (≥ 1.8V to 3.3V translation)
180Mbit/s (≥ 1.1V to 3.3V translation)
150Mbit/s (≥ 1.1V to 2.5V translation)
120Mbit/s (≥ 1.1V to 1.8V translation)
100Mbit/s (≥ 1.1V to 1.5V translation)
80Mbit/s (≥ 1.1V to 1.2V translation)

ESD protection:

HBM exceeds 8000V
CDM exceeds 1000V

Latch-up performance exceeds 100mA
Specified from -40°C to +85°C and -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SLP74AVC16T245JZ	TSSOP-48-300-0.5	AVC16T245	Halogen free	Tube
SLP74AVC16T245JZTR	TSSOP-48-300-0.5	AVC16T245	Halogen free	Tape&Reel

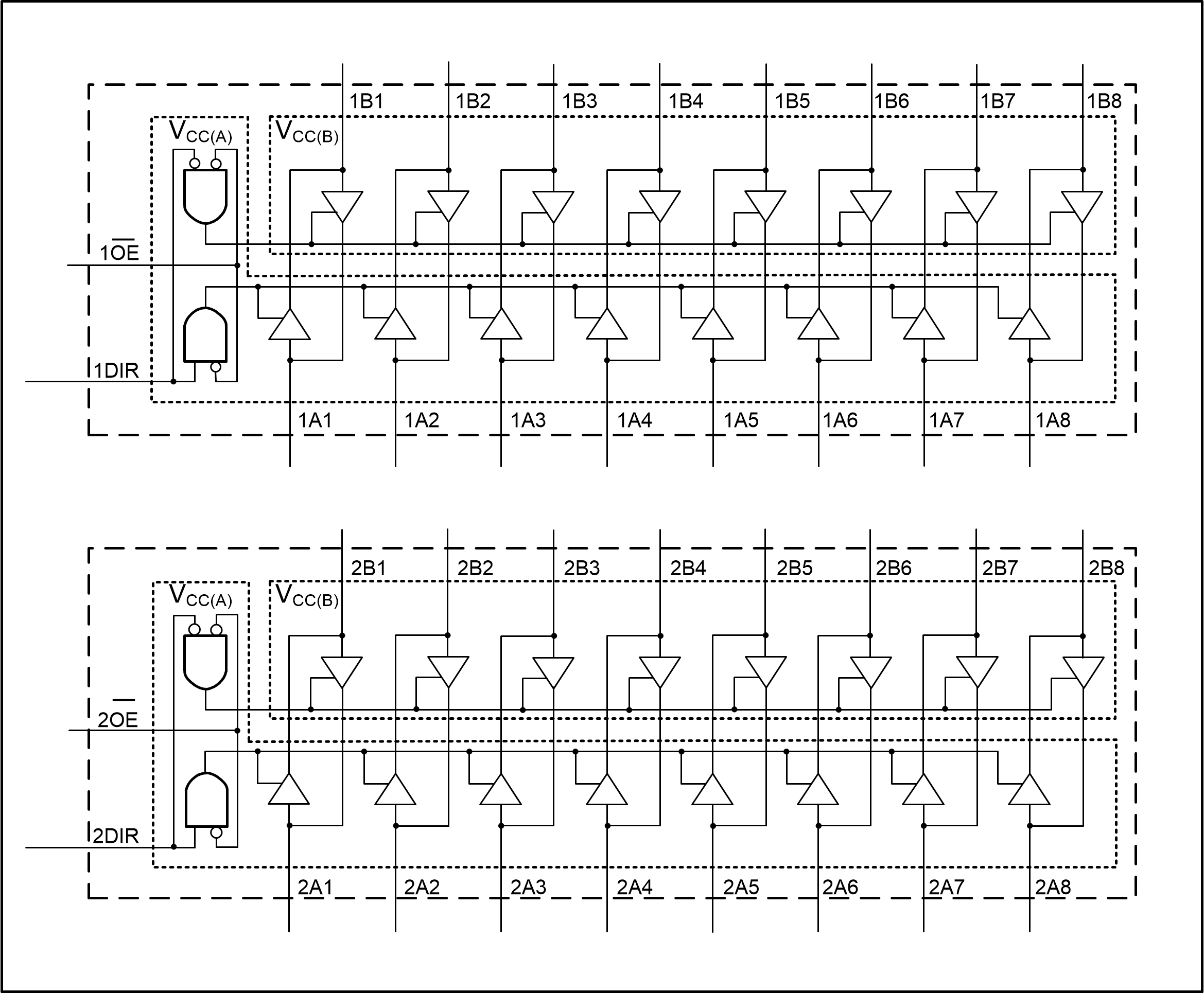

Block Diagram

Fig.1 Logic diagram

Documents

title	Types of	Size (KB)	date	Download the latest English version
SLP74AVC16T245		0	2020-10-21	SLP74AVC16T245 Brief Datasheet

Packages

TSSOP-48-300-0.5
