SAP084B

QUADRUPLE OPERATIONAL AMPLIFIERS

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SAP084B consist of four independent, high-voltage JFET-input, frequency-compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 10V to 30V.

The devices feature high slew rates, low-input bias and offset currents, and low offset-voltage temperature coefficient.

Main feature

Wide Single?Supply Range: 10V~30V
Wide Common-Mode and Differential Voltage Ranges
Low Input Bias and Offset Currents
High-Input Impedance: JFET Input Stage
Common-Mode Input Voltage Range Includes VCC+
Internal Frequency Compensation

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SAP084BSB	SOP-14-225-1.27	SAP084B	Halogen free	Tube
SAP084BSBTR	SOP-14-225-1.27	SAP084B	Halogen free	Tape&Reel

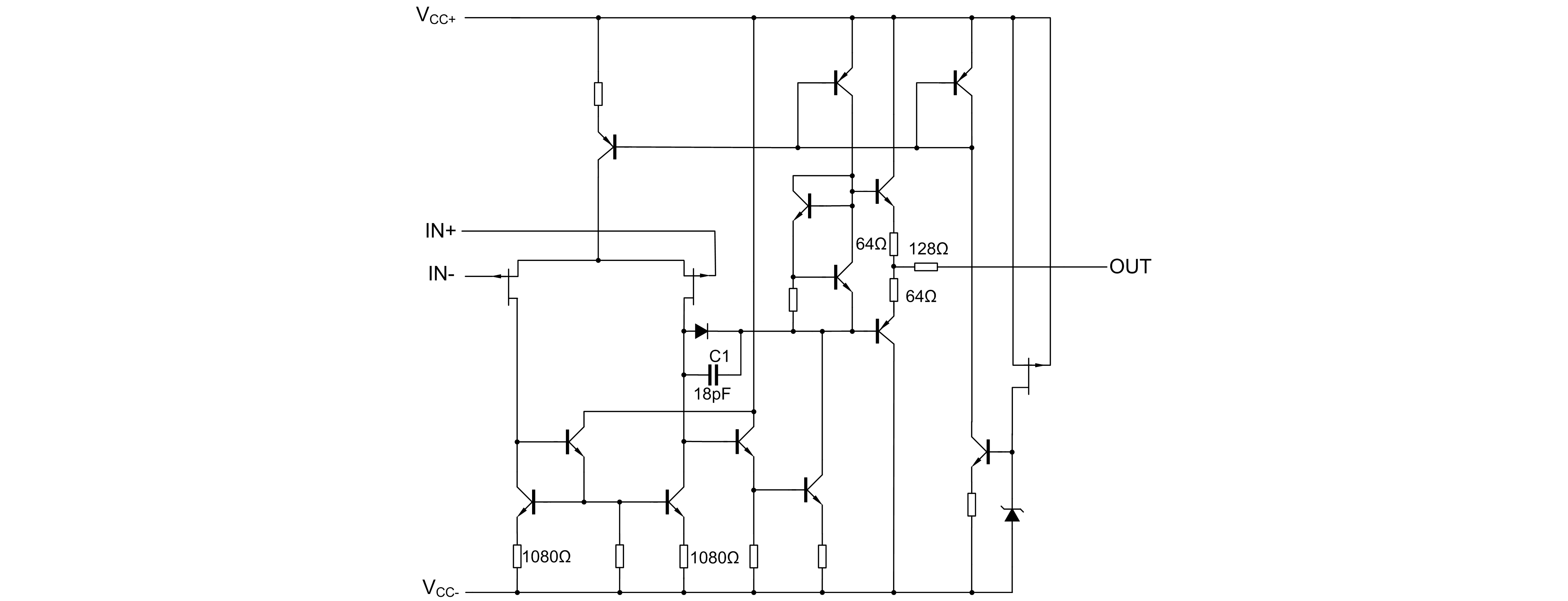

Block Diagram

SAP084B .png

Documents

title	Types of	Size (KB)	date	Download the latest English version
SAP084B		0	2021-06-21	SAP084B Datasheet

Packages

SOP-14-225-1.27
