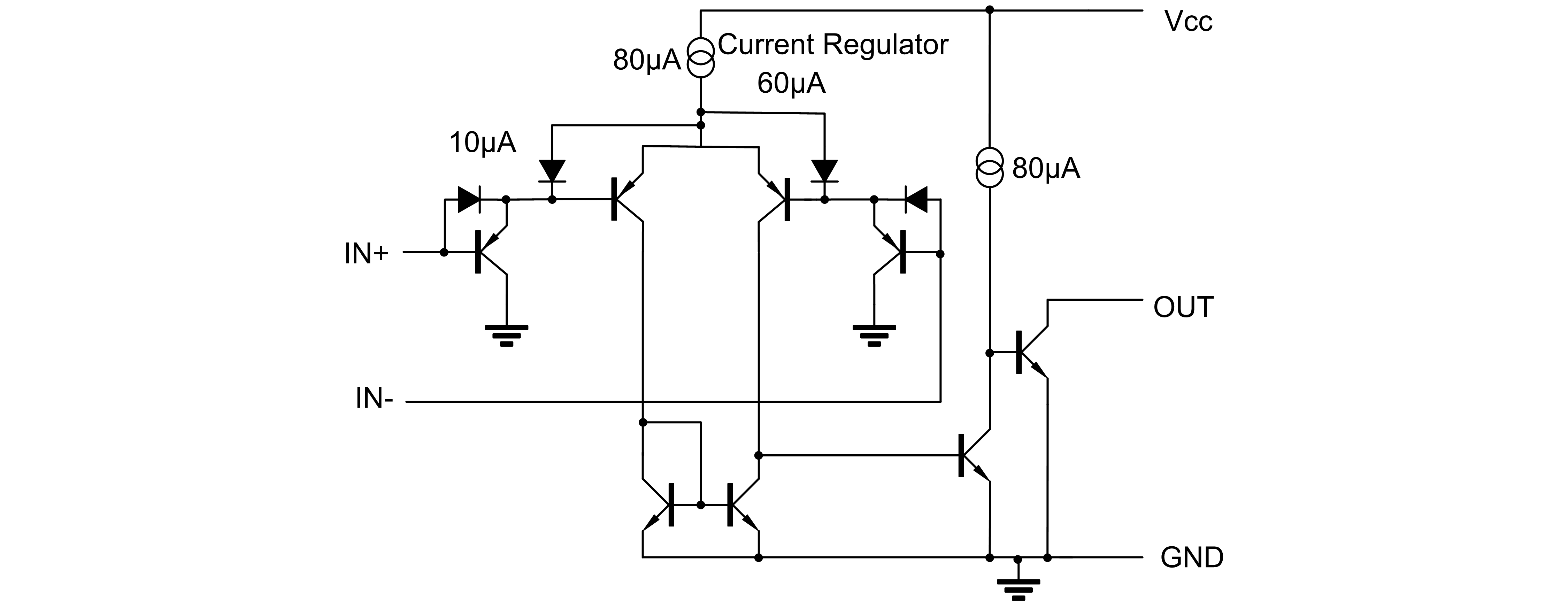

The SAP293 consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage, and the outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
Wide Single?Supply Range: 2V~36V
Faster response time of 1 ?sec
Common-mode input voltage range includes ground
Differential input voltage range equal to maximum rated
supply voltage: ±36V
Low output saturation voltage
ESD rating (HBM): 2KV
| Product Name | Package form | Marking | Hazardous Substance Control | Packing Type | Remarks |
|---|---|---|---|---|---|
| SAP293SA | SOP-8-225-1.27 | SAP293SA | Halogen free | Tube | |
| SAP293SATR | SOP-8-225-1.27 | SAP293SA | Halogen free | Tape&Reel |
| title | Types of | Size (KB) | date | Download the latest English version |
|---|---|---|---|---|
| SA293 | 0 | 2021-07-16 | SA293 Datasheet |
