SLP74LVC32A

QUADRUPLE 2-INPUT OR GATE

Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

The SLP74LVC32A devices are quadruple 2-input OR gates.

Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V system environment.

Main feature

Inputs accept Voltages to 5V
Operate from 1.2V to 3.6V
CMOS low power consumption
Direct interface with TTL levels
ESD protection:

HBM exceeds 2000V
CDM exceeds 1000V

Latch-up performance exceeds 250mA
Specified from -40°C to +85°C and from -40°C to +125°C

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SLP74LVC32AJY	TSSOP-14-225-0.65	LVC32A	Halogen free	Tube
SLP74LVC32AJYTR	TSSOP-14-225-0.65	LVC32A	Halogen free	Tape & Reel

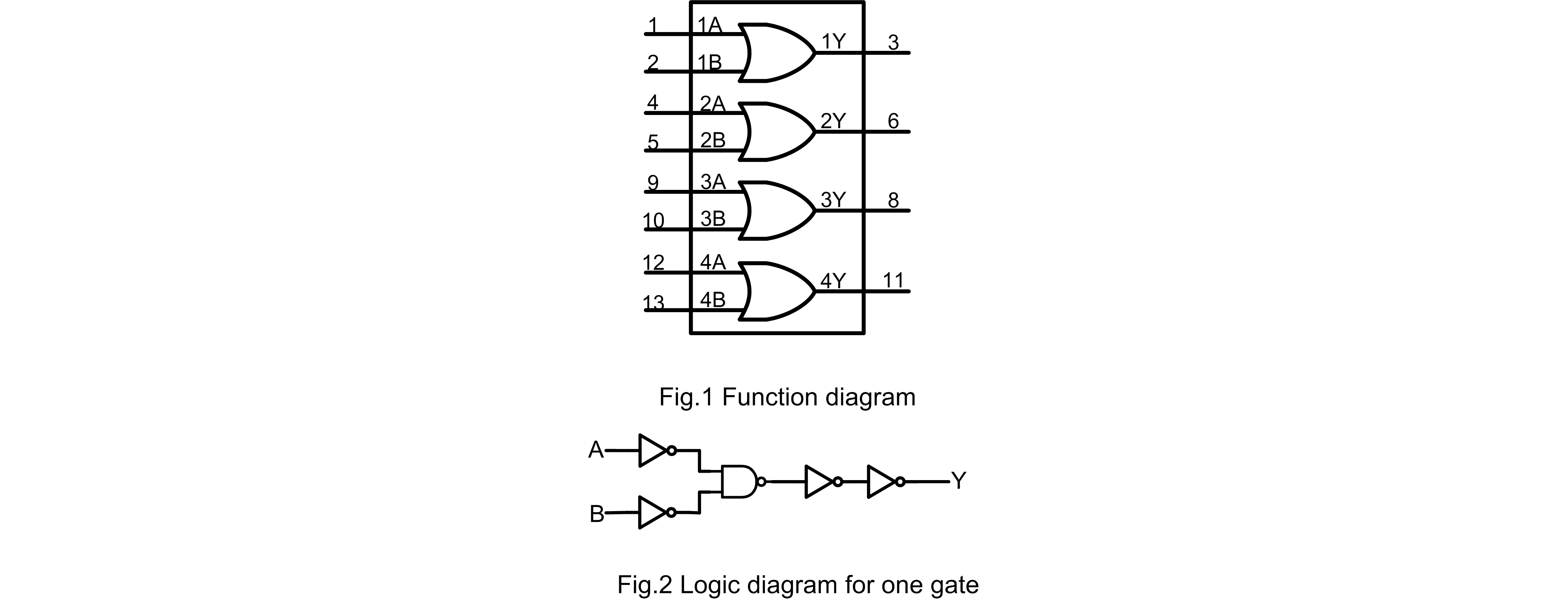

Block Diagram

SLP74LVC32A 英文.png

Documents

title	Types of	Size (KB)	date	Download the latest English version
SLP74LVC32A		0	2022-04-24	SLP74LVC32A Brief Datasheet

Packages

TSSOP-14-225-0.65
