SLP74AHC541

OCTAL BUFFER/LINE DRIVER WITH 3-STATE OUTPUTS

Description Main feature Internal block diagram Technical documentation Relevant package outline drawing

The SLP74AHC541 are octal buffer/line driver with 3-state outputs.

The 3-state control gate is a two-input AND gate with active-low inputs so that if either output-enable (OE(———0 or OE(———1) input is high, all corresponding outputs are in the high-impedance state. The outputs provide noninverted data when they are not in the high-impedance state.

Main feature

Inputs accept voltages higher than VCC
Balanced propagation delays
CMOS input levels
ESD protection:

HBM Exceeds 2000V
CDM Exceeds1000V

Latch-up performance exceeds 100mA
Specified from -40°C to +85°C and from -40°C to +125°C

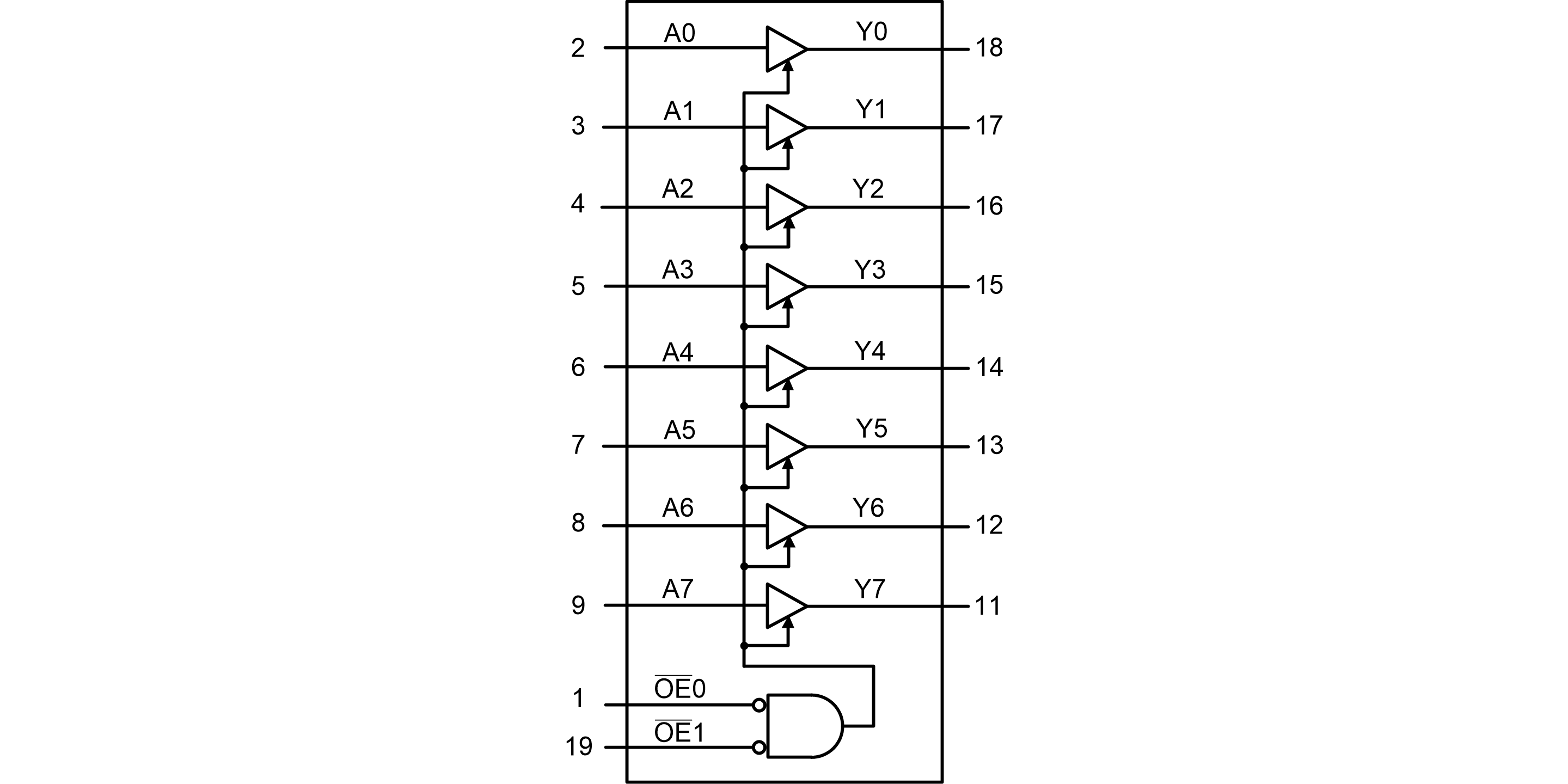

Block Diagram

SLP74AHC541 （2880-1440）.png

Documents

title	Types of	Size (KB)	date	Download the latest English version
SLP74AHC541		0	2022-05-18	SLP74AHC541 Brief Datasheet

Packages

TSSOP-20-225-0.65
