SC7CT27180

HIGH PERFORMANCE ANALOG OUTPUT MEMS MICROPHONE

Description Main feature Product specification classification Internal block diagram

SC7CT27180 is a high-performance, low power dissipation, top-ported, omnidirectional, analog output MEMS microphone with small SMD package. SC7CT27180 integrates acoustic sensor device, low noise input stage and output amplifier. SC7CT27180 features high sensitivity, high SNR and flat&wide frequency response.

Due to the low power, battery life of portable products is longer. SC7CT27180 has internal RF suppression circuit and it is available in small package 2.75 x 1.85 x 0.95, compatible with SMT process. The voltage range is 1.5V~3.6V.

Main feature

Wide voltage range : 1.5~3.6V
high SNR: 65dBA
ultra low power dissipation: <120uA
Flat frequency response
Stable performance
Compatible with SMT process
Omnidirectional
10000g high0G anti-surge
RF protection and suppression
Package: 2.75 x 1.85 x 0.95

Ordering Information

Product Name	Package form	Marking	Hazardous Substance Control	Packing Type	Remarks
SC7CT27180	2.75 x 1.85 x 0.95	無	Halogen free	Tape & Reel

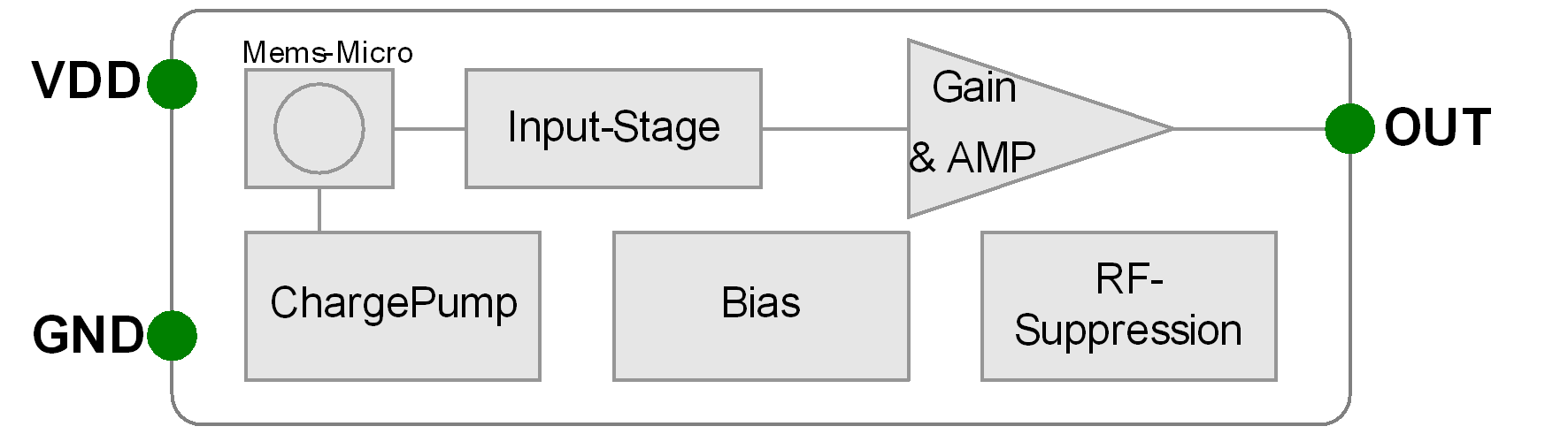

Block Diagram
